จอ LED กลางแจ้ง ภายนอกอาคาร P4 แบบติดตั้งถาวร ขนาด 960×960มม./คาบิเนต

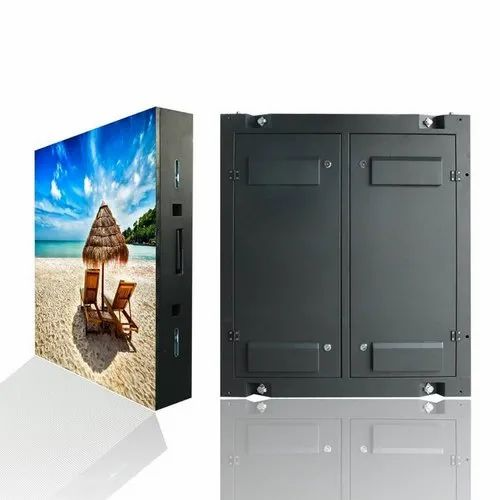

P4 Outdoor SMD 1/4 Scan LED Display 960×960mm
This is a simple headline
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| LED Lamp | |
| Type | SMD3535 |
| Arrangement | 1R1G1B |
| Brand | Epistar / Kinglight / Nationstar lamp |
| Chip parameters | Red (620-625nm) IV:(800-960mcd) |
| Chip parameters | Green (520-525nm) IV:(1350-1650mcd) |
| Chip parameters | Blue (470-475nm) IV:(330-400mcd) |
| LED Module | |
| Pixel Pitch | 10mm |
| Module Size | 320×160mm |
| Module Resolution | 32×16=512(Dots) |
| Module Weight | 0.5kg |
| LED Cabinet | |
| Pixel Density | 10000 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 160×160=25600(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Cabinet Dimension(W*H*D) | 960×960×175mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quanty /Cabinet | 3×6=18(Pcs) |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Cabinets Material | Steel |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 40kg/PCS |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| Brightness | >5000cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 120(Horizontal), 120(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 13m |
| Protection Level(front/back) | IP66/IP54 |
| Power Consumption (Max) | 1000 w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 300 w/sqm |
| Operating Temp/Humidity | -15oC~50oC,15%~85%RH |
| Display Function | Text, Graphics, Video |
| Storage Temp/Humidity | -30oC~55oC,15%~85%RH |
| Refresh Rate | >1920Hz |
| Drive Mode/Driver Position | Constant driving 1/4 Scan, Combined diver board |
| Heat Dissipation | Screen size >30sqm / Temperature >40oC, need matched air conditioner cooling. only for Outdoor Normal Led Display |
| Control System | |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 10 ,Windows 7 and XP |
| Software | LED Studio(HSTV-NOVA) |
| Communication Type | Net cable; 4G, WIFI(Sold separately) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
| Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
